Cotswold Windows was established in 1976 and began manufacturing products in 1980. Windows are more than just openings in walls; they are vital components of the living spaces that provide ventilation, light, and aesthetic appeal. To ensure the optimal performance of Windows, the choice of hardware is crucial. Here, Cotswold explore the benefits and features of three heavy-duty hardware solutions: Heavy-Duty, Self-Balancing & Fortis HDA Friction Stays, Heavy-Duty Parallel Stays, and Telescopic Support Arms.

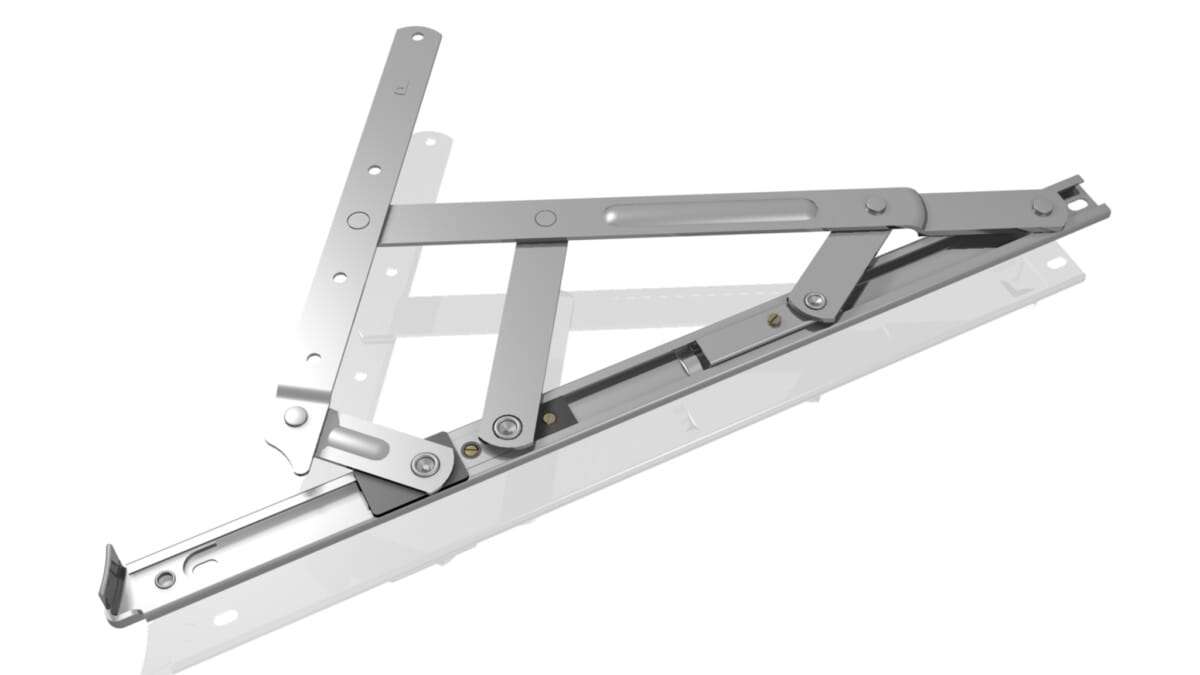

- Heavy-Duty Self-Balancing & Fortis HDA Friction Stays Designed for top-and side-hung windows made of timber, UPVC, and large-section aluminium, the Heavy-Duty Self-Balancing & Fortis HDA Friction Stays redefine window functionality. These stays offer the following features:
- Carrying capacity: With the ability to support commercial vents up to 1200mm wide or 1800mm high and 140kg in weight, these stays are built to handle substantial loads.
- Material options: Available in 2.5mm Austenitic Steel as standard, with an option for 3.0mm on special order, providing durability and longevity.
- Stack height: A stack height of 16.5mm ensures efficient space utilization.
- Easy installation: The adjustable friction mechanism makes fitting easy, ensuring a secure and well-balanced installation.
- Smooth operation: Windows equipped with these friction stays offer a lifetime of smooth and balanced operation, allowing for easy opening and closing.
- Weather sealing: Effective weather sealing and draught proofing are concealed once the stays are fitted, enhancing energy efficiency.
- Corrosion resistance: Manufactured from high-grade Austenitic stainless steel, these stays are designed to withstand even the most corrosive environments.
- Added strength: An Austenitic stainless steel cap adds extra strength, and additional linkage provides greater rigidity.
- Slider mechanism: The composite steel/plastic slider guarantees both strength and smooth operation.
- International standards: These friction stays conform to leading international window performance standards in various regions, including the UK (BS6375 Part 2 1987), North America (AAMA 904.1), France (NFP-20-302), and Singapore (SS 212 1998).
- Heavy-Duty Parallel Stays Parallel-opening windows are gaining popularity due to their efficient natural ventilation capabilities. The Heavy-Duty Parallel Stays are designed to enhance the performance of timber, UPVC, and large-section aluminium windows. Key features include:
- Optimal ventilation: Parallel opening windows allow for balanced airflow around the entire opening, providing ultimate natural ventilation.
- Building management integration: These systems can be connected to building management systems, enabling automated climate control solutions.
- Manual or automated operation: The stays can be operated manually or using electric actuators, offering versatility in window management.
- Streamlined design: The Cotswold Parallel stay closes inline, expanding the range of profile sections that can be used. The hinge mechanism remains fully concealed when the sash is closed.
- Friction control: An adjustable friction mechanism allows for precise control over manually operated sashes.
- Durability and corrosion resistance: Like the other hardware solutions, these stays are manufactured from high-grade Austenitic stainless steel, ensuring longevity even in corrosive environments.
- Support and consultation: Technical and sales support are available for project-specific consultancy and on-site advice when required.
HD16 R 3
HD22 SB 2
- Telescopic Support Arm
- For standard duty parallel opening in timber, UPVC, and various aluminum profiles, the Telescopic Support Arm offers enhanced window performance. Features include:
- High-grade construction: These support arms are manufactured from high-grade Austenitic stainless steel, ensuring durability.
- Controlled opening: The “Tel” series support arms limit the window opening and can be locked in desired positions for ventilation and to prevent sudden closure during strong winds.
- Easy unlocking: To unlock the support arms from their opening position, users simply need to lift the sash and slightly close it.
To sum up, the choice of heavy-duty hardware solutions plays a pivotal role in achieving optimal window performance, especially for larger and more demanding applications. The Heavy-Duty Self-Balancing & Fortis HDA Friction Stays, Heavy-Duty Parallel Stays, and Telescopic Support Arms offer a range of features that enhance functionality, durability, and overall user experience. By considering these advanced hardware options, architects, builders, and homeowners can ensure their windows are not only aesthetically pleasing but also efficient, secure, and capable of withstanding the test of time.
For more details on the product,
Contact:
Cotswold SEA Private Limited
Address: 502, Damji Shamji Business Galleria, LBS
Marg, Above D Mart, Kanjurmarg (W),
Mumbai – 400078
Mobile: +91 84258 85037
Landline: 022 25781088/1089
Website: www.cotswoldap.com
