Plast One uPVC Windows and Doors

Unitized Balcony Cladding Panel

By: admin

Cladding Panel
Cladding Panels



Scheldebouw has developed a unitized balcony solution for the project Greenwich Peninsula Plot 205 in London. It is a combination of a prefab balcony and a unitized facade panel in ONE. They install both the cladding panel at floor level and the balcony, combined, in one go. And all adjacent panels are locked in using their proprietary unitized gasket system. This means no more closures to be applied on site, no come-back works and no temporary solutions required to install a balcony.

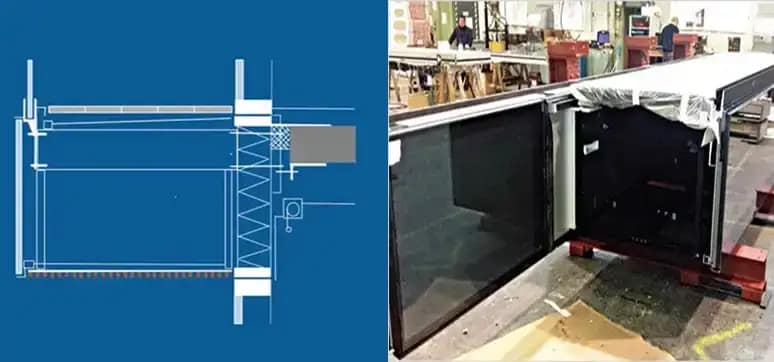

Balcony Cladding Panel profile
Balcony Cladding Panel profile

The unitized balcony cladding panel is prefabricated in the Scheldebouw factory. It is made out of structural aluminium beams and aluminium sub-construction. The balcony cladding panel is thermally broken and complies with condensation requirements. The deck and soffit are included when it leaves the factory. The glass balustrade is installed prior to installation. Large GRC clad panels will be installed on site to form the sides of the balcony.

Balcony Cladding
Balcony Cladding

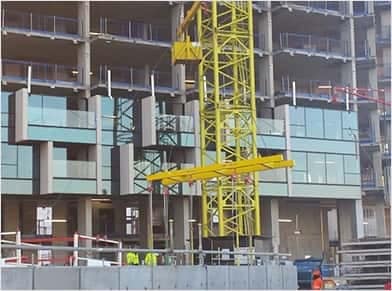

The light weight balconies are installed using standard concrete halfen channels, so no requirement for special cast-ins or steel provisions in the concrete slab edge. The balconies are installed within cladding tolerances.
