Supply of Fresh Air & External Solar Shading for High Rise Buildings

By: Frank Goudman | Posted on: Tuesday September 17, 2019

In renovation or new construction, the emphasis nowadays is very much on advanced insulation and airtight construction. Not only these technologies are beneficial in energy consumption, but also pays a special attention to the quality of the indoor air and the indoor temperature. Continuous and controlled supply of fresh air and outdoor sun protection together ensures a healthy and comfortable indoor climate, even in high rise buildings.

Black Forest Project, Shanghai, China :

Preventing Overheating by Providing External Sun Protection

Large glass panels ensure that there is sufficient daylight, but at the same time, the direct incoming sunlight often disturbs the visual comfort and increases the risk of overheating during hotter periods. The better insulated high-rises definitely include external solar protection to deflect the sunlight before it has a chance to reach the glass, which helps to avoid increasing costs for active cooling.

To achieve optimal comfort, it is important to take into account – the orientation of the building, the influence of the different seasons, and the lifestyle of the people who live or work in this environment. It is important to evaluate the different systems during the design phase and incorporate the most suitable elements in the design.

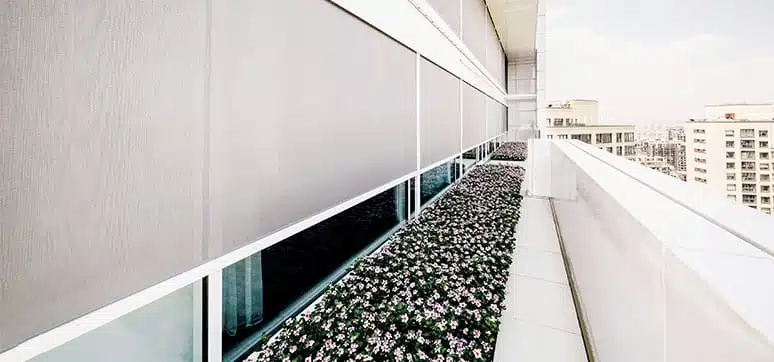

External Sun Protection at Shanghai China External sun protection prevents from overheating in the Black Forest apartments in Shanghai

In the Black Forest Project in Shanghai (China), the external sun protection screens have been integrated into the façade construction of this 100- m high apartment block. The bottom profiles of the screens were made extra heavy to ensure that they can withstand the wind loads at that height.

Facts File : High Rise BuildingsAccording to CEG (contractor):

“For the Black Forest project, we decided to work with large glass surfaces by using minimalistic window systems. Which means that the main surface of the façade is glass and there are nearly no actual walls. Because of these large glass surfaces, we knew that overheating and glare might heavily influence the comfort of our residents.

So we made the decision to use external sun-shading, which was not yet very common in China. As the buildings are all at least 25 floors high, and Shanghai sometimes incurs typhoons, the wind resistance was a very important aspect for us.”

Odukale Business Center, Istanbul, Turkey :

Odukale Business Centre Facade Design
At the Odukale Business Centre, it was Important that the Supply of Fresh Air did not have a Visual Impact on the Façade

Managing Continuous and Controlled Supply of Fresh Air

Basic ventilation guarantees good air quality. Self regulating ventilation louvres ensure the supply of fresh air that replaces the polluted indoor air. The renovation of a 70s office building in Istanbul (Turkey) meant that it is now mandatory to ventilate the building for a healthy indoor climate. At the same time, the supply of fresh air could not have a visual impact on the protected façade of the high rise buildings.

In this case, the government did not want the appearance of this high-rise from the 1970s to be the same as it was before. And it is difficult to reconcile with the mandatory provisions that needed to be made to provide those who live and/or work there with continuous fresh air.

Facts File : High Rise BuildingsSo window ventilators not only had to fulfill the acoustic, waterproof and constructional requirements, but should at the same time barely have a visual impact on the architectural details of the building.

Bringing in fresh air directly through window ventilators is a new trend in Turkey, says Mutlu Ergün, Senior Field Operations Engineer at TURKCELL. “The only problem is, a lot of standard windows ventilation is unable to meet the requirements in terms of acoustics, water proofness, fire protection and architecture, especially when it comes to high rise buildings.’

Plot 16 Apartments, Moscow, Russia : Natural Ventilation in High rise Buildings

Facade Design at Plot 16 Moscow Russia

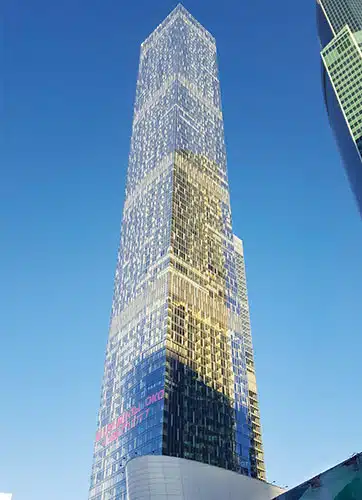

Plot 16 at Moscow,
Russia

Natural ventilation in this 300 m high tower was not that simple to integrate, as in Russia, it is not allowed to have any opening parts in the façade starting from a certain height. Studies have shown that no less than 80% of people in high-rise office buildings or apartment buildings still want to feel like that they can bring fresh air inside.

But opening a window is not always an option in this case. We at Renson, have customized ventilation louvers that always provide a great alternative to supply the necessary fresh air in the curtain walls that are so often characteristic of high rises. The ventilation louvers are aesthetically integrated and are compliant with the requirements for acoustics, wind-resistance, airflow, rain, insects, security and you have the possibility to regulate these by yourself.

Frank Goudman

Export Sales Director

Frank Goudman is a Belgian engineer in civil building, graduated in 1988. In the first years of his career, he was the R&D Manager for Reynaers Aluminium and since 1994, he worked as the Export Director for the same company. He was involved in developing new export markets in CE Europe, the Middle East, Asia & Oceania. Since 2012, Frank Goudman has been active as the Export Sales Director at Renson, a Belgian family owned company specialized in natural ventilation, sun protection and outdoor systems over 110 years. He is responsible for developing the export markets. In the Gulf, Renson has been active worldwide through a network of appointed dealers and façade builders in Dubai, Abu Dhabi, Manama and Doha.
