Bharat Diamond Bourse Bandra – Kurla Complex, Mumbai

By: Ar. Reza Kabul, ARK Reza Kabul Architects

The Bharat Diamond Bourse project had started in the 1980s and had changed many hands before it finally progressed to Architect Reza Kabul in the early 2000s. Located in the suburban commercial hub of Bandra – Kurla Complex, Bharat Diamond Bourse had a distinguished architectural character and is one of the largest commercial complexes in India. Every structure built and proposed in Bandra – Kurla Complex has a unique personality of its own: the buildings stand out and yet gel with the overall scheme which is modem and fresh unlike any other place in India. The challenge at ARK was to give a fresh look to the Bharat Diamond Bourse structure designed in a different outlook.

The project needed to be revamped considering the revised utility requirements, which involved detailed site analysis of the existing structure and studying the previous drawings. As it was not possible to make major structural changes, it was decided to adopt less radical approaches based on transforming existing components and working within the parameters of conventional yet modern methods of transforming the buildings. The concept was to project a modern structure breaking the monotony of the façade and lightening the building both in physical weight as well as in visual presence.

bharat diomand projects
The Bharat Diamond Bourse project

The highlighting feature of the otherwise flat institutional structure is the thick blue band on the exterior ACP facade. Aluminium Composite Panels (ACP) offer consistent flatness, and can be easily cut, bent and shaped to fit various designs. Being light it weight, ACP is an ideal material for a large-scale institutional project such as BDB as it offers quick installation saving time and costs. Furthermore, their light-weight design reduces the dead weight of the building. ACP requires minimal maintenance, as less as an annual cleaning; and is resistant against corrosion, chalking and colour fading. Keeping in mind that the workers require as much maximum light as possible while sorting or cutting diamonds, the buildings’ design includes wide windows. The total window area is 300,000 sq ft with special non-reflective glass windows.

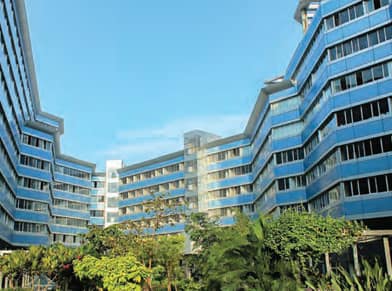

facade design
Spread over 20 acres, the project consists of a total of 8 towers, each scaling 9 storey tall

While the existing towers were handled individually and also as a master layout, each component in the towers was from India, with an inflow of approximately 20,000 – 30,000 people daily. Traffic movement of the entire complex was designed accounting for a daily traffic of 50,000 individuals and considering the existing entry exists in the basements, security issues, class and variety of people entering and exiting the complex at venous hours.

“Buildings had to be pulled down and restructured amidst a brief that was not always final. There were many limitations and many parameters but I think we did a great job,” says ARK. Work finally finished in 2011, and today Bharat Diamond Bourse is resplendent for its clear glass façade.

studied in detail before applying any proposed changes. The existing towers had lot of offsets in the façade in terms of cut outs at various levels as per the old scheme. Major structural works were required to fill these gaps and make the elevation simple. The new tower was also designed on the same lines but simpler in form.

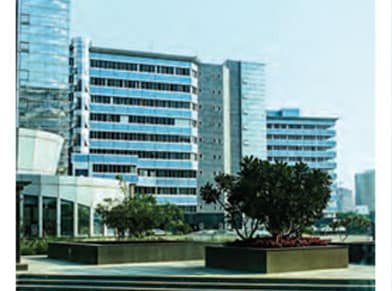

Fcadae of Bharat Diamond Bourse
The thick blue band on the exterior ACP facade

Spread over 20 acres, the Bharat Diamond Bourse consists of a total of 8 towers, each scaling 9 storey tall. The total constructed area is 2,000,000 sq ft, with an addition of a 1,000,000 sq ft basement area with a car park for roughly 1800 cars.

Bharat Diamond Bourse is home to about 2,500 small and large diamond traders in addition to the custom house, banks and other service providers who cater to the gems and jewelry trade. BDB handles over 60 per cent of diamond exports from India, with an inflow of approximately 20,000 – 30,000 people daily. Traffic movement of the entire complex was designed accounting for a daily traffic of 50,000 individuals and considering the existing entry exists in the basements, security issues, class and variety of people entering and exiting the complex at venous hours

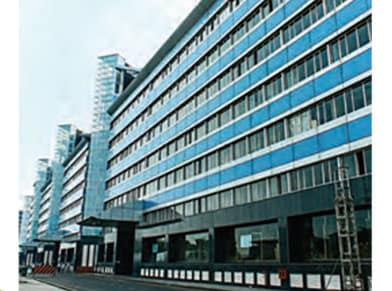

 Bharat Diamond Bourse
The thick blue band on the exterior ACP facade

“Buildings had to be pulled down and restructured amidst a brief that was not always final. There were many limitations and many parameters but I think we did a great job,” says ARK. Work finally finished in 2011, and today Bharat Diamond Bourse is resplendent for its clear glass façade.

QUICK FACTS

Project: Bharat Diamond Bourse
Architect: ARK Reza Kabul Architects Pvt. Ltd.
Location: Bandra-Kurla Complex, Mumbai
Area: 20 acre
Type: Institutional
Scope: Architecture + Master Planning

Ar. Reza Kabul, ARK Reza Kabul Architects

President

Ar. Reza Kabul is the president of the design firm ARK Reza Kabul Architects. Established in 1988, it reflects the common vision to inspire quality living through innovation, sustainable design and holistic design approach. ARK began its practice in a time of exciting change and urban growth in India. Today, with strength of over 100 full time employees, the studio has grown drastically along with the country. Keeping in mind our clienteles unique background and need profile, they develop innovative approaches to design, access cutting edge technologies, and implement advanced management practices to provide optimal solutions with a focus on quality, timeline, and cost economy. ARK Reza Kabul Architects is headquartered in Mumbai (India) with offices at Pune and San
